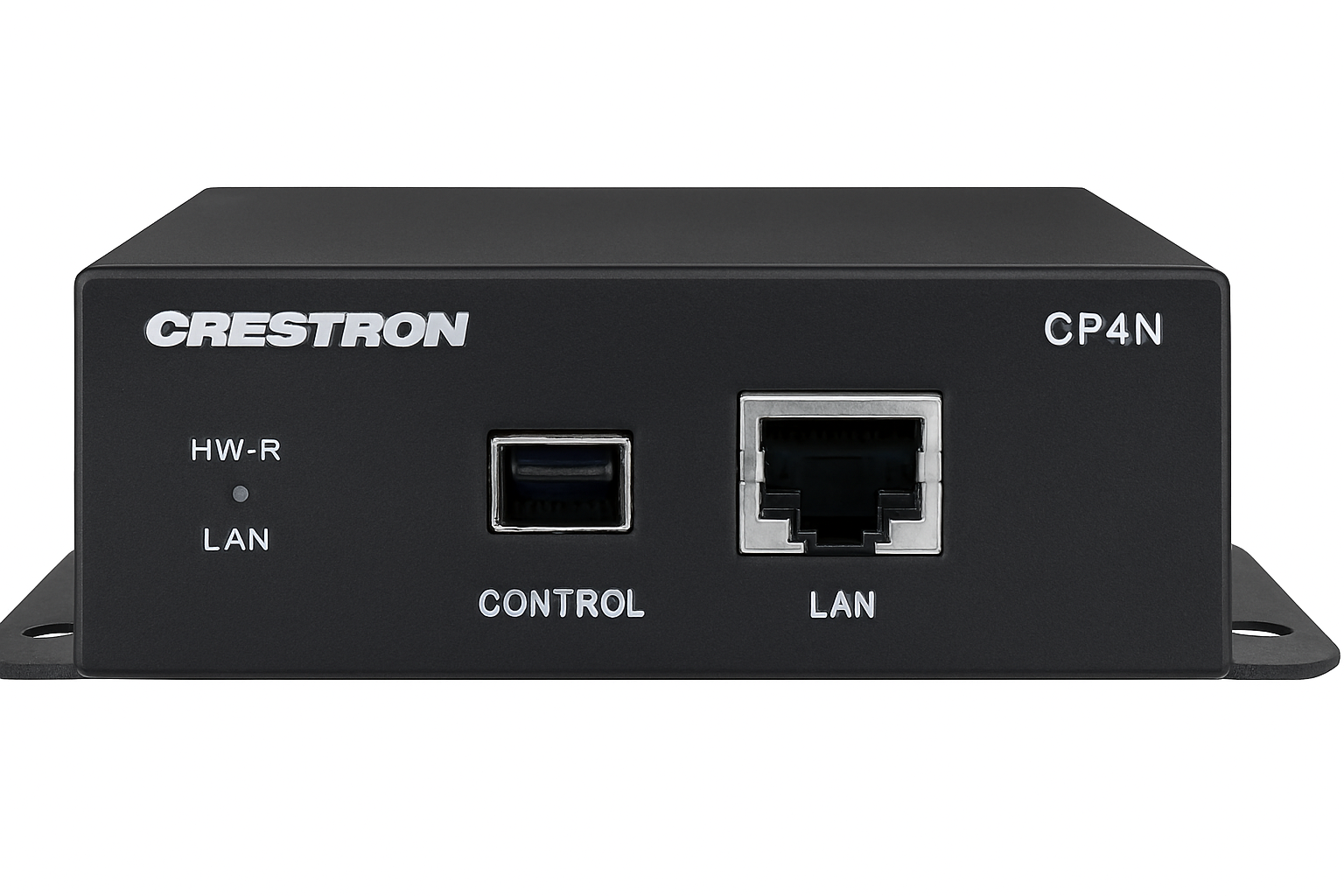

CP4N
A rack-mountable control system with a powerful 4‑Series™ control engine and numerous integrated control ports. Features an isolated control subnet that provides a Gigabit Ethernet LAN dedicated to Crestron devices.
Related products
86BDL3552T/75
85.6″ (217.4 cm) 4K UHD (3840 × 2160) interactive touch display running Android 9. Designed for demanding collaborative and educational environments, it supports up to 20 simultaneous touch‑points, features an anti‑glare toughened glass, and integrates built‑in whiteboard and multi‑screen sharing modes.
CSC2000
| a wired chairman microphone unit designed for use with the CS2000 conference system. It features a 400 mm gooseneck electret condenser microphone with a cardioid polar pattern. The unit includes a built-in loudspeaker and dual 3.5 mm headphone connectors, each with volume control. On the control panel are a microphone ON/OFF push-button, a priority button (in the chairman version), a microphone gain control, and headphone volume control. The headphone output level is -8 dBV / +2 dBV, with an output impedance of 22 Ω. It connects via a 2 m cable terminated in a 7-pin DIN male plug and offers a 7-pin DIN female socket for daisy-chaining to further units. The unit’s frequency response is 50 Hz–18 kHz and the maximum SPL for 1 % THD is 125 dB. The unit operates within a temperature range from 0 °C to +40 °C, has net dimensions of 115 × 65 × 170 mm, and a net weight of approximately 1.1 kg. |
CSU2000
conference system control and power supply unit features a mains input of AC 100-240 V, 50/60 Hz, with a maximum current consumption of 1.0 A at 100 V or 0.42 A at 240 V. ManualsLib+1 It supplies DC power of +15 V and -7.5 V to connected microphone units. ManualsLib+1 The unit provides a comprehensive range of unbalanced line inputs (line, telephone coupling, insertion) with sensitivity of -14 dBV nominal / +11 dBV maximum and an input impedance of 33 k惟. ManualsLib Corresponding line outputs deliver -14 dBV nominal / +11 dBV maximum with an output impedance of 500 惟. ManualsLib It also accepts an external balanced microphone input with sensitivity of -56 dBV (-6 dBV via adapter), phantom power of 12 V 卤1 V. ManualsLib The unit can support up to 50 delegate/chairman microphone units in its standard configuration and up to 150 units when used with an optional extender board. Arco | Music+1 Physically, the unit measures 360 脳 90 脳 150 mm (WxHxD) and weighs approximately 1.80 kg. ManualsLib Its built-in MP3 recording capability via USB stick, LCD display for system status, test mode for microphone units, and connected headphone output makes it a full-featured conference system controlle
UNITE 200 PRO PTZ CAMERA 910-2100-080
professional Full HD PTZ camera delivering up to 1080p60 video with a 20× optical zoom and 16× digital zoom.
Designed for large meeting rooms or training spaces where high‑quality zoom and professional integration (USB/HDMI/IP/Serial control) are required. Supported by popular collaboration platforms.
UNITE 260 PRO CAMERA 910-2100-018
| professional 4K UHD PTZ camera featuring a 1/1.8″ CMOS sensor with ~8.51 megapixels. It offers a 20× optical zoom (focal length ~4.4–88.5 mm, aperture f/1.8‑2.6) and up to 16× digital zoom. The horizontal field of view spans approx. 60.7° at wide to 3.36° at full zoom. It supports motorised pan ±170° and tilt from ‑30° to +90°; pan speed up to ~100°/sec and tilt up to ~69.9°/sec. Minimum illumination is 0.5 lux (f/2.0, AGC on) and signal‑to‑noise ratio is ≥ 55 dB |
