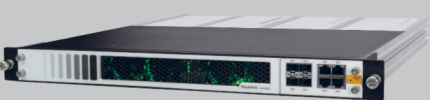

HDC 7024A

Description

 24 DVB-S2x FTA Tuner, 2 GigE Ports, 2 ASI In, 1 RF out
 Up to 128 channels TS over UDP/RTP multicast,
IGMP v2\v3 inputs on GbE1
 16 non-adjacent QAM carriers output, compliant to
DVB-C (EN 300 429) Annex C and ITU-T J.83 A/B
 16 multiplexed / scrambled TS over IP UDP or
RTP/RTSP outputs to GbE2
 Accurate PCR adjusting, PSI/SI editing and inserting
 CA PID filtering, remapping and PSI/SI editing
 Up to 180 PIDS remapping per channel
 Support DVB Conditional Access encryption System
(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
 Info-Channel inserting: TS player via USB (FAT 32)
 Web-based Network management
 Optional with redundant 2nd PSU available
