IRD 6300

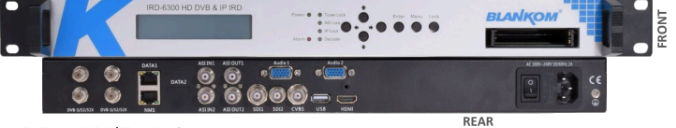

The BLANKOM IRD-6300 is a well-designed Integrated Receiver Decoder.Depending on the selected Tuner option it’s dual frontend support DVB-S/S2x (DVB-C, DVB-T/(T2), ISDB-T and ATSC- optional) and additionally ASI and IP Input sources.
Description
Description
• 2x Tuner DVB-S/S2x L-Band Input, (DVB-C/ISDB-Tb/T/T2 optional)
• 2x ASI and IP (UDP) Inputs (and outputs)
• IP stream out: IP (1 MPTS & 16 SPTS) over UDP and RTP/RTSP
• HD/SD-SDI, 2 ASI, HDMI, CVBS Video Output
• Audio: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2,
Dolby Digital/Dolby Digital Plus decoding and AC3 passthrough
• Video: HD/SD MPEG2, MPEG4 AVC/H.264, HEVC/H.265 decoding
• 2 independent CI-Slots for 2 CA Modules (CAM) TS from ASI/Tuner/IP
• Embedded Re-multiplexer 128 PIDs
• BISS Descrambling: Mode 1 and Mode E, up to 120Mb/s
• CC (Closed Caption) and TT-Subtitle support SDI embedded
• Up to 2 Stereo analogues out with Adapter
• Web based Management = NMS Network Management, 1x GbE Streaming
