FBT
CSC2000
| a wired chairman microphone unit designed for use with the CS2000 conference system. It features a 400 mm gooseneck electret condenser microphone with a cardioid polar pattern. The unit includes a built-in loudspeaker and dual 3.5 mm headphone connectors, each with volume control. On the control panel are a microphone ON/OFF push-button, a priority button (in the chairman version), a microphone gain control, and headphone volume control. The headphone output level is -8 dBV / +2 dBV, with an output impedance of 22 Ω. It connects via a 2 m cable terminated in a 7-pin DIN male plug and offers a 7-pin DIN female socket for daisy-chaining to further units. The unit’s frequency response is 50 Hz–18 kHz and the maximum SPL for 1 % THD is 125 dB. The unit operates within a temperature range from 0 °C to +40 °C, has net dimensions of 115 × 65 × 170 mm, and a net weight of approximately 1.1 kg. |
CSL106T
The CSL 106T speaker unit for ceiling-mounting consists of an ABS structure with a white RAL 9016 painted grille. It features a compact size and an excellent acoustic performance. This unit has handy tough spring-type hooks that make it easy to fasten securely to a false ceiling. A transformer for connection to a 100V constant voltage line is included in the supply, with selectable power-output steps.
CSU2000
conference system control and power supply unit features a mains input of AC 100-240 V, 50/60 Hz, with a maximum current consumption of 1.0 A at 100 V or 0.42 A at 240 V. ManualsLib+1 It supplies DC power of +15 V and -7.5 V to connected microphone units. ManualsLib+1 The unit provides a comprehensive range of unbalanced line inputs (line, telephone coupling, insertion) with sensitivity of -14 dBV nominal / +11 dBV maximum and an input impedance of 33 k惟. ManualsLib Corresponding line outputs deliver -14 dBV nominal / +11 dBV maximum with an output impedance of 500 惟. ManualsLib It also accepts an external balanced microphone input with sensitivity of -56 dBV (-6 dBV via adapter), phantom power of 12 V 卤1 V. ManualsLib The unit can support up to 50 delegate/chairman microphone units in its standard configuration and up to 150 units when used with an optional extender board. Arco | Music+1 Physically, the unit measures 360 脳 90 脳 150 mm (WxHxD) and weighs approximately 1.80 kg. ManualsLib Its built-in MP3 recording capability via USB stick, LCD display for system status, test mode for microphone units, and connected headphone output makes it a full-featured conference system controlle
DM-C8208
The Digital Matrix Controller offers an 8-in by 8-out channel digital audio matrix with eight balanced mic/line inputs and eight balanced line outputs. Each channel is powered by a robust DSP processor and supports 48V phantom power for all eight inputs. The system can connect up to eight DM-S8208 paging stations and eight DM-P8208 wall panels, with eight channels available for audio linking. It includes 12 general-purpose I/O contacts and features a calendar format scheduler for automated control. Remote control is available via a user-friendly GUI for PC and smart devices, with a TCP/IP control port for network integration. The unit is compact, fitting into a 1 RU rack space.
DM-S8208
digital matrix station equipped with a gooseneck condenser microphone and a dedicated control panel featuring a Power ON/OFF button, an ALL button, Volume/Talk button, CHIME button, 8 Group buttons, 8 Preset buttons, and 16 Output Channel buttons. It supports priority functions, and can be powered either directly from the main matrix controller or via a dedicated 24 VDC socket. The station allows daisy‑chain expansion through an RJ45 LINK terminal, includes an AUX input with volume control, and has a dedicated chime volume control for notifications.
M 12×4
mixer / preamplifier with 12 inputs and 4 outputs. It offers 4 mic/line inputs with selectable priority: the four microphone inputs override all other inputs, and mic‑input 1 has priority over mic inputs 2‑4. Each mic input includes volume control and a “voice” control, and phantom power (24 V) is available. There are also 4 stereo line inputs on double RCA connectors, selectable via a dedicated knob, plus master volume and tone controls. The outputs include two XLRs for left and right channels (each with independent volume control), one stereo output, and one stereo recording output. The unit fits in a 1U rackmount enclosure.
MD-S 1100
unidirectional cardioid dynamic microphone is designed for both handheld and stand‑mounted use. It features an ON‑OFF switch for convenient muting, and a male XLR connector for professional audio connection. The body is finished in anthracite grey and is fitted with a black mesh grille plus an antipop filter to reduce plosives. With high performance and high‑quality voice reproduction, it delivers low distortion and is built to resist knocks. The special capsule suspension mount helps isolate handling noise, making the microphone ideally suited for speech‑applications.

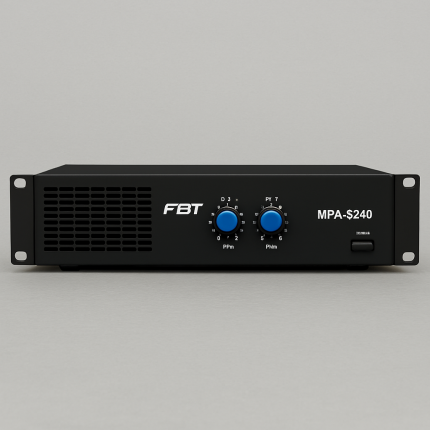

MPA 5240
unit offers balanced line input and output via XLR‑F and XLR‑M sockets with adjustable sensitivity, alongside an unbalanced line input via double RCA connectors. It also provides a dedicated RJ45 socket for connection of a MBT 1101‑series microphone station, and a telephone/emergency audio input with adjustable threshold and sensitivity for priority calls. On the front panel, there is a master volume control along with bass and treble tone controls, while a rear‑panel selector switch enables or disables the front panel’s tone and volume controls. The loudspeaker line output supports constant‑voltage operation (50 V / 70 V / 100 V) or 8 Ω impedance connection. An LED‑type VU‑meter on the front gives immediate visual feedback of output power. Also included are contact inputs for activating input precedence (override) and a built‑in alerting chime with level control. The unit supports selectable power supply modes at 230 V AC / 115 V AC and 24 V DC mains.
MXA1120
The 60W/120W amplifiers feature a comprehensive range of inputs and controls, including one XLR microphone input with phantom power and support for MBT 1101 series desk microphones (RJ45, CAT5 SFTP cable), as well as one MIC/LINE input with phantom power and a selectable MIC or LINE mode. They offer two XLR balanced microphone inputs with phantom power, including MIC1 equipped with A.P.T. (Automatic Priority Threshold) adjustment, and two AUX inputs for sound sources such as tape or CD. Micro-switches allow for setting priorities and input functions, supporting up to eight desk microphones with cascade connection. There is a TEL/EMERG input for emergency calls featuring input level and activation threshold (A.P.T.) adjustment. The amplifier provides a line auxiliary output and loudspeaker line outputs with constant voltage options of 50-70-100 V or low impedance 8 Ohm. Additional features include terminal strips for 24Vdc external power supply and precedence connection, along with warning signal (chime) level adjustment.
