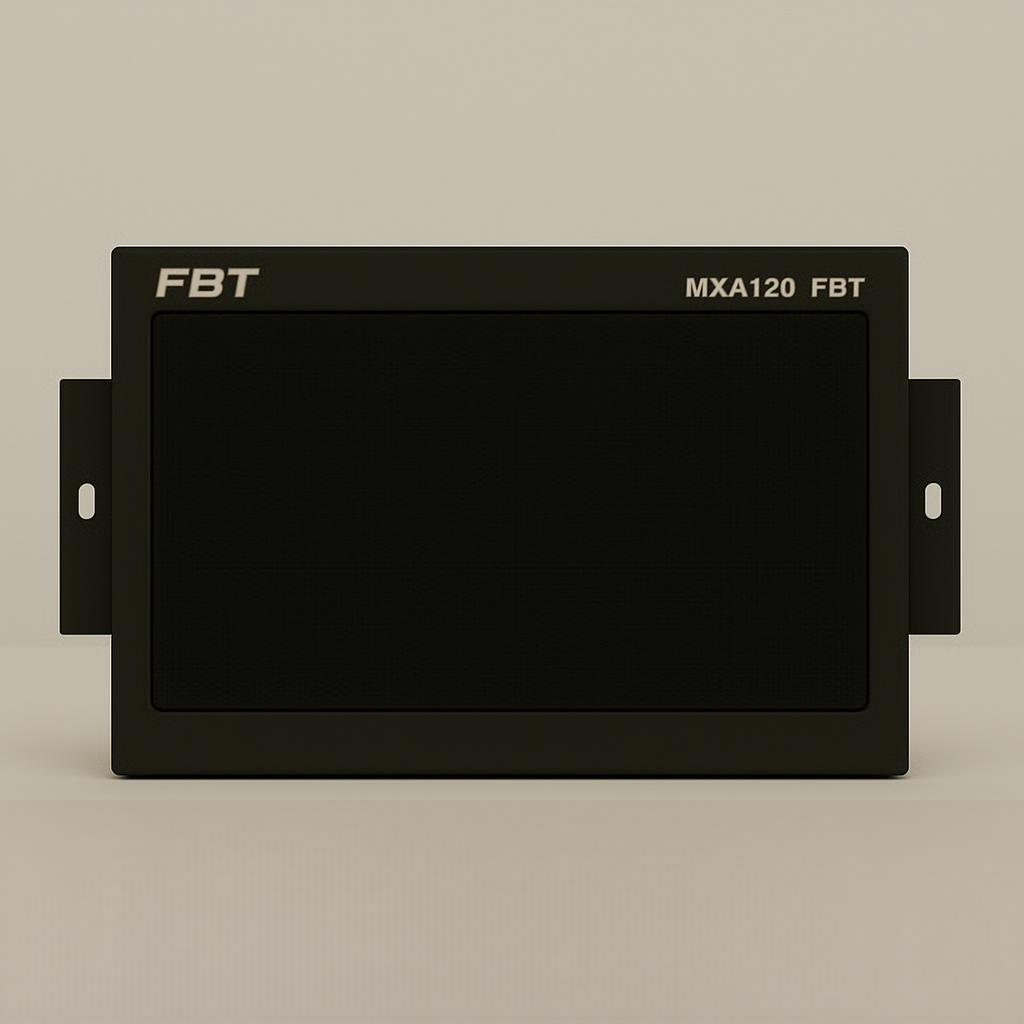

MXA1120
The 60W/120W amplifiers feature a comprehensive range of inputs and controls, including one XLR microphone input with phantom power and support for MBT 1101 series desk microphones (RJ45, CAT5 SFTP cable), as well as one MIC/LINE input with phantom power and a selectable MIC or LINE mode. They offer two XLR balanced microphone inputs with phantom power, including MIC1 equipped with A.P.T. (Automatic Priority Threshold) adjustment, and two AUX inputs for sound sources such as tape or CD. Micro-switches allow for setting priorities and input functions, supporting up to eight desk microphones with cascade connection. There is a TEL/EMERG input for emergency calls featuring input level and activation threshold (A.P.T.) adjustment. The amplifier provides a line auxiliary output and loudspeaker line outputs with constant voltage options of 50-70-100 V or low impedance 8 Ohm. Additional features include terminal strips for 24Vdc external power supply and precedence connection, along with warning signal (chime) level adjustment.
Description
Description
The 60W/120W amplifiers feature a comprehensive range of inputs and controls, including one XLR microphone input with phantom power and support for MBT 1101 series desk microphones (RJ45, CAT5 SFTP cable), as well as one MIC/LINE input with phantom power and a selectable MIC or LINE mode. They offer two XLR balanced microphone inputs with phantom power, including MIC1 equipped with A.P.T. (Automatic Priority Threshold) adjustment, and two AUX inputs for sound sources such as tape or CD. Micro-switches allow for setting priorities and input functions, supporting up to eight desk microphones with cascade connection. There is a TEL/EMERG input for emergency calls featuring input level and activation threshold (A.P.T.) adjustment. The amplifier provides a line auxiliary output and loudspeaker line outputs with constant voltage options of 50-70-100 V or low impedance 8 Ohm. Additional features include terminal strips for 24Vdc external power supply and precedence connection, along with warning signal (chime) level adjustment.
