Roger
F7
F7 is an easy to use biometric device, which can work both in an standalone mode
or as a slave device connected to the access controller. The F7 is equipped with an
LCD display, a keypad and an optical fingerprint sensor. Reader can be
programmed manually, using a built-in keypad or remotely from PC (through
RS232, RS485 or Ethernet). Using Wiegand data output it can be interfaced as a
slave reader to various access controllers including PRxx2 series as wel

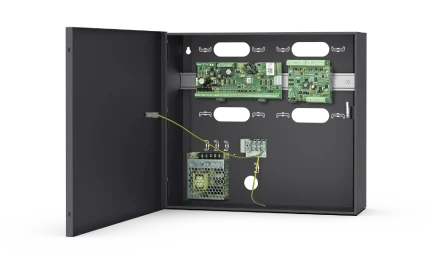

MC16-PAC-EX-2-KIT
Two-door access control kit for the RACS 5 v2 EX system.
The kit comprises a metal enclosure with a power supply, a door expander and a network access controller. MC16-PAC-EX-2-KIT enables the implementation of read-in/read-out access control for two doors using RS485 (MCT series readers), RACS CLK/DTA (PRT series readers) or Wiegand readers.
MC16-PAC-EX-3-KIT
Three-door access control kit for the RACS 5 v2 EX system.
The kit comprises a metal enclosure with a power supply, a door expander and a network access controller. MC16-PAC-EX-3-KIT enables the implementation of read-in/read-out access control for three doors using MCT series readers (RS485). In the case of connecting Wiegand or RACS CLK/DTA readers (PRT series readers), the kit enables the operation of three read-in doors or two read-in/read-out doors.
MC16-PAC-EX-4-KIT
Four-door access control kit for the RACS 5 v2 EX system.
The kit comprises a metal enclosure with a power supply, a door expander and a network access controller. MC16-PAC-EX-4-KIT enables the implementation of read-in/read-out access control for four doors using MCT series readers (RS485). In the case of connecting Wiegand or RACS CLK/DTA readers (PRT series readers), the kit enables the operation of four read-in doors or two read-in/read-out doors.
MC16-PAC-ST-1-KIT
One-door access control kit for the RACS 5 v2 ST system.
The kit comprises a metal enclosure with a power supply
and a network access controller. MC16-PAC-ST-1-KIT
enables the implementation of read-in/read-out access
control for one door using RS485 (MCT series readers),
RACS CLK/DTA (PRT series readers) or Wiegand readers.
MC16-PAC-ST-2-KIT
three-door access control kit for the RACS 5 v2 ST system.
The kit comprises a metal enclosure with a power supply,
a door expander and a network access controller. MC16
PAC-ST-3-KIT enables the implementation of read-in/
read-out access control for two doors using RS485 (MCT
series readers), RACS CLK/DTA (PRT series readers) or
Wiegand readers.
MC16-PAC-ST-3-KIT
The kit comprises a metal enclosure with a power supply, a door expander and a network access controller. MC16-PAC-ST-3-KIT enables the implementation of read-in/read-out access control for three doors using MCT series readers (RS485). In the case of connecting Wiegand or RACS CLK/DTA readers (PRT series readers), the kit enables the operation of three read-in doors or two read-in/read-out doors.

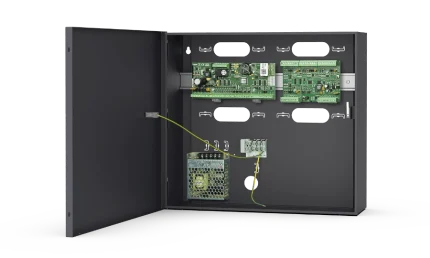

MC16-PAC-ST-4-KIT
Four-door access control kit for the RACS 5 v2 ST system.
The kit comprises a metal enclosure with a power supply, a door expander and a network access controller. MC16-PAC-ST-4-KIT enables the implementation of read-in/read-out access control for four doors using MCT series readers (RS485). In the case of connecting Wiegand or RACS CLK/DTA readers (PRT series readers), the kit enables the operation of four read-in doors or two read-in/read-out doors.
MCT62E
support for EM 125 kHz cards
RS485 interface with EPSO 3 protocol (RACS 5 system)
reading distance up to 5 cm
3 LED indicators
outdoor operation
anti-sabotage protection (tamper)
RADIUS series product line
firmware updates available
12 VDC power supply
CE mark
dimensions: 100.0 × 40.0 × 25.0 mm (height × width ×depth)
MCT80M
The MCT80M is an access terminal dedicated to RACS 5 access control and building automation system.
Terminal enables identification of users by means of 13.56 MHz MIFARE Ultralight® and MIFARE® Classic cards. MCT80M is equipped with RS485 interface which is used for communication with access controller.
Because of its relatively small size, reader can be also used as locker/cabinet reader. MCT80M can be installed in outdoor locations without any additional protection measures. The MCT80M is aligned with QUADRUS series product line.
Features
access terminal for RACS 5
13.56 MHz MIFARE Ultralight/Classic reader
3 LEDs
buzzer
RS485
tamper
outdoor environment
QUADRUS product line design
dimensions: 100.0 x 45.0 x 16.0 mm (height x width x depth)
CE mark
