Call Point Basic (920)
| The Call Point Basic is our entry level addressable Call Point with pear lead connection and reassurance LED. |
Category: Nurse Call System
Description
Description
| The Call Point Basic is our entry level addressable Call Point with pear lead connection and reassurance LED. |
Related products
946

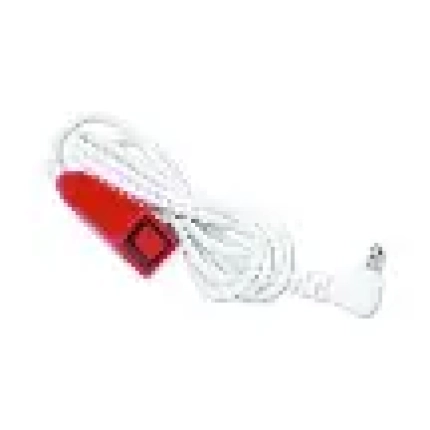

NC805C/6
1.8m (6ft) Tail Call Lead
A short 1.8m tail call lead for use with C-TEC’s Quantec and 800 Series Call Systems.
Allows users to remotely generate Standard calls from armchairs, beds, etc.
Comprises a pear-shaped call push, 1.8m (6ft) trailing lead and a 6.35mm remote jack plug.
Connects to the 6.35mm remote socket on compatible Quantec and 800 Series call points. If connecting to a Quantec-Pro call point, a QP805G1A (6.5mm to RJ12) adaptor is also required,
Activating the pear push or removing the tail call lead from a call point’s remote socket will generate a Standard call.
NC910S
10 Zone Call Controller c/w 300mA PSU (Surface Version)
Compatible with C-TEC’s entire range of 800 Series field devices.
Housed in an attractive surface mounting plastic enclosure measuring just 214mm x 178mm
Two call levels – standard (constant tone) and emergency (intermittent tone).
Optional mute and call accept/reset buttons.
‘Call Accept’ functionality allows staff to send an intermittent call acknowledgment signal to calling zones to confirm help is on the way (dependent on wiring and field devices used).
Includes a 12V 300mA PSU and 2 volt-free relay contacts which activate on a standard or emergency call.
Innovative slide-in labelling system.

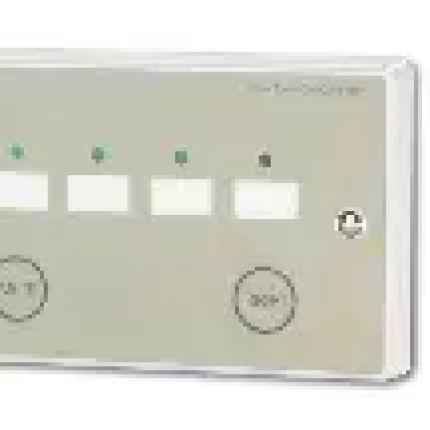

NC944
Four Zone Call Controller (requires NC930 12V 250mA PSU)
An attractively-designed four zone call controller c/w mute and reset buttons.
Fully compatible with C-TEC's entire range of 800 Series Call System components.
Capable of indicating standard (constant tone) and emergency (intermittent tone) calls.
Requires a separate NC930 12V 250mA PSU.
Includes four zonal alarm LEDs, RESET and MUTE buttons.
Two open collector outputs (Emergency and Aux Out).
Up to two NC944s can be connected to one NC930 PSU to create a mini-call system of up to 8 zones.
Mounts on a standard 25mm UK double gang back box.
QT-603
Quantec Network Splitter
An essential wiring/installation aid for C-TEC’s Quantec Addressable Call System.
Helps protect against open and short circuit faults and reduces the risk of volt drop.
Includes one input and one output connection for Quantec’s ‘Spine’ wiring (typically 1.5-2.5mm T&E) and six fused 400mA ‘limb’ connections for the wiring of individual circuits containing Quantec’s field devices (typically 4 core stranded security cable).
At least one QT603 is required per Quantec system (the more you use, the easier it will be to program and fault-find).
Install one QT603 per corridor junction (locate at the end of the corridor nearest to the Quantec Controller). If the corridor is longer than 50m, install the splitter in the centre of the corridor to reduce wiring runs.
Mounts on a standard 25mm UK double gang back box.
‘Power’ and ‘Fault’ indicators.
Max. 60 addressable devices per QT603.
QT606
Overdoor Light
Provides visual indication of calls made from a Quantec call point outside bedrooms, WCs, etc.
Flash and colour sequence changes/intensifies to reflect the urgency of the incoming call.
Dual red and green LEDs and triangular diffuser make it highly visible from a distance.
Mounts on a standard UK 25mm single gang flush or surface back box.
Finished in tough, durable ABS plastic.
Overdoor lights with sounders and addressable overdoor lights and sounders (to provide area indication at corridor junctions etc.) are also available.

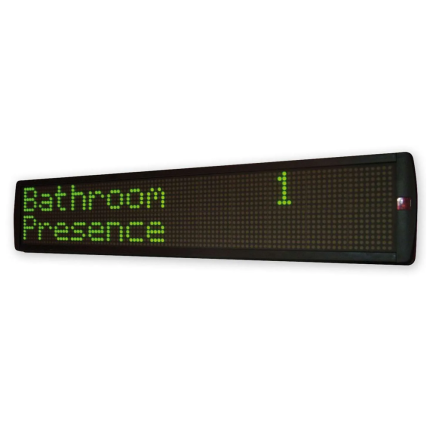

QT608CD1S
