EB-X49

Our Contractor CMX44CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market. The CMX44CS supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic video down conversion. The 4-way matrix also includes audio breakout and advanced EDID management.

a wired chairman microphone unit designed for use with the CS2000 conference system. It features a 400 mm gooseneck electret condenser microphone with a cardioid polar pattern. The unit includes a built-in loudspeaker and dual 3.5 mm headphone connectors, each with volume control. On the control panel are a microphone ON/OFF push-button, a priority button (in the chairman version), a microphone gain control, and headphone volume control. The headphone output level is -8 dBV / +2 dBV, with an output impedance of 22 Ω. It connects via a 2 m cable terminated in a 7-pin DIN male plug and offers a 7-pin DIN female socket for daisy-chaining to further units. The unit’s frequency response is 50 Hz–18 kHz and the maximum SPL for 1 % THD is 125 dB. The unit operates within a temperature range from 0 °C to +40 °C, has net dimensions of 115 × 65 × 170 mm, and a net weight of approximately 1.1 kg.

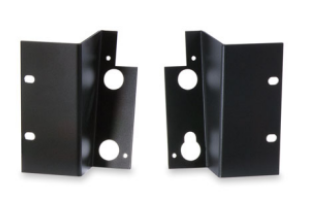

The LBB 3311/00 19-inch rack mounting set is a set of brackets and other necessary fixings to mount a Control Unit into a 19-inch rack system.

professional 4K UHD PTZ camera featuring a 1/1.8″ CMOS sensor with ~8.51 megapixels. It offers a 20× optical zoom (focal length ~4.4–88.5 mm, aperture f/1.8‑2.6) and up to 16× digital zoom. The horizontal field of view spans approx. 60.7° at wide to 3.36° at full zoom. It supports motorised pan ±170° and tilt from ‑30° to +90°; pan speed up to ~100°/sec and tilt up to ~69.9°/sec. Minimum illumination is 0.5 lux (f/2.0, AGC on) and signal‑to‑noise ratio is ≥ 55 dB
