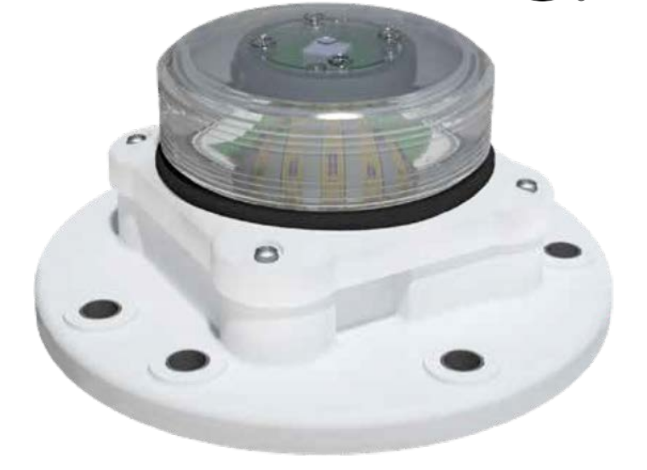

FTS 350i-2 Wind Turbine Lighting System
The FTS 350i-2 is a medium-intensity red LED aviation obstruction light designed for wind turbine operators. It is a fully integrated, stand-alone system that eliminates the need for an external controller within the turbine nacelle
Description
Description
Standard Features
• Infrared (IR) LEDs for compatibility with NVG and NVIS per
FAA AC 150/5345-43J
• Aircraft Detection Lighting System (ADLS) interface (lighting
control module sold separately)
• Surge immunity of 25kA to withstand 99% of all lighting
strikes
• Fully integrated system – no external controller
• Easy to carry and install on turbines due to extremely low
weight
• Fresnel optics minimize ground scatter, making the light more
community friendly
• GPS for synchronized flashing
• Handheld remote controller simplifies light setup
• Field-configurable flash rate of 20 or 30 fpm
• Dry contact alarm for beacon, GPS sync and mode change
• 5-year warranty
