FTS 371 Smart Vanguard

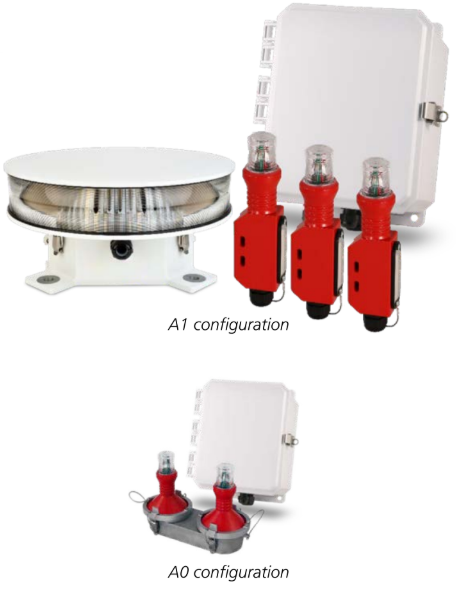

The FTS 371 Smart Vanguard is a medium-intensity red LED aviation obstruction lighting system designed for FAA type A0 and A1 structures. The system utilizes patent-pending current feedback monitoring technology to ensure consistent results regardless of fluctuations in temperature or incoming power, while reducing marker power consumption by up to 98% compared to incandescent lighting.
Description
Description
The standard features of the FTS 371 Smart Vanguard® Medium Intensity Red LED Aviation Obstruction Lighting System are:
- Flash rate of 20, 30, 40 or 60 flashes per minute (200 ms flash duration). Only 30 fpm flash rate is applicable for FAA certified applications filed under AC 70/7460-1M.
- Red and infrared (IR) LEDs for compliance with FAA AC150/5345-43J and low power consumption.
- Mode override switch.
- Photodiode control with alarm inhibit option.
- Modbus RTU Serial RS-485.
- 4 dry contact relays (PHD, BCN and MKR alarms, MODE status relay).
- Support for up to 8 markers and 1 beacon.
- Sync input/output interconnects multiple boards for sync without GPS.
- 5-year warranty.
System options include:
- Negative 24-48VDC $\pm$10% (isolated DC power supply).
- GPS synchronization.
- Powder-coated aluminum enclosure.
- SNMP monitoring through FTM 190.
